x900 series
Air-Cooled AI Server Powered by High-performance OAM GPU module.
Advanced Cooling. Limitless Power. Designed for the Datacenters of Tomorrow.
Powerful
- Support X86 Processors
- Support 32 DIMM slots, RDIMM up to 6400 MT/s
- Support High-performance OAM GPU Module air-cooled support
Scalable
- Up to 8 × 800 G networking
- Compatible with full- and half-height NIC cards
Optimized
- Front I/O access for easy maintenance
- N+N redundant PSU for reliability
- High-efficiency thermal and DC/DC power solutions
Overview

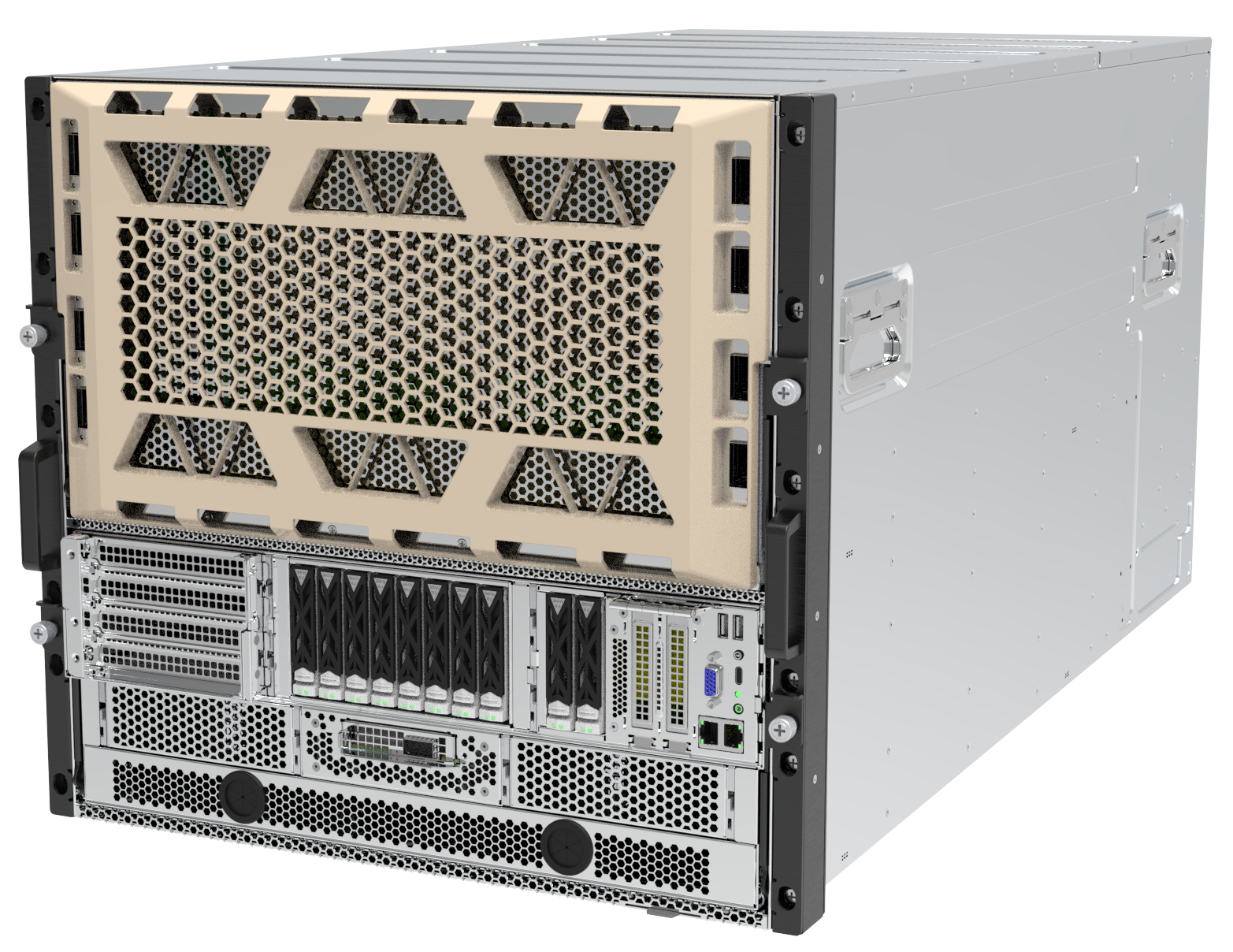

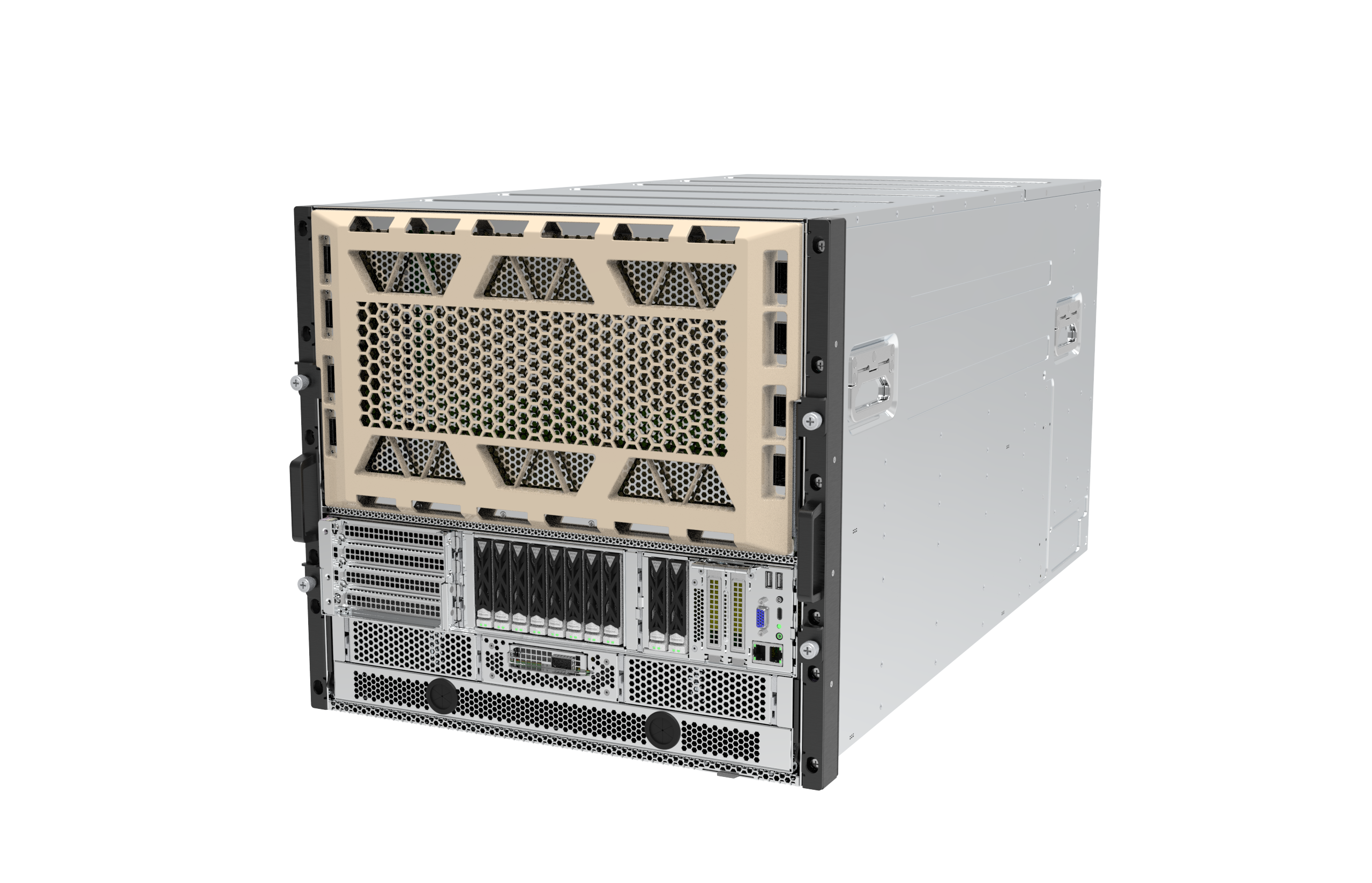

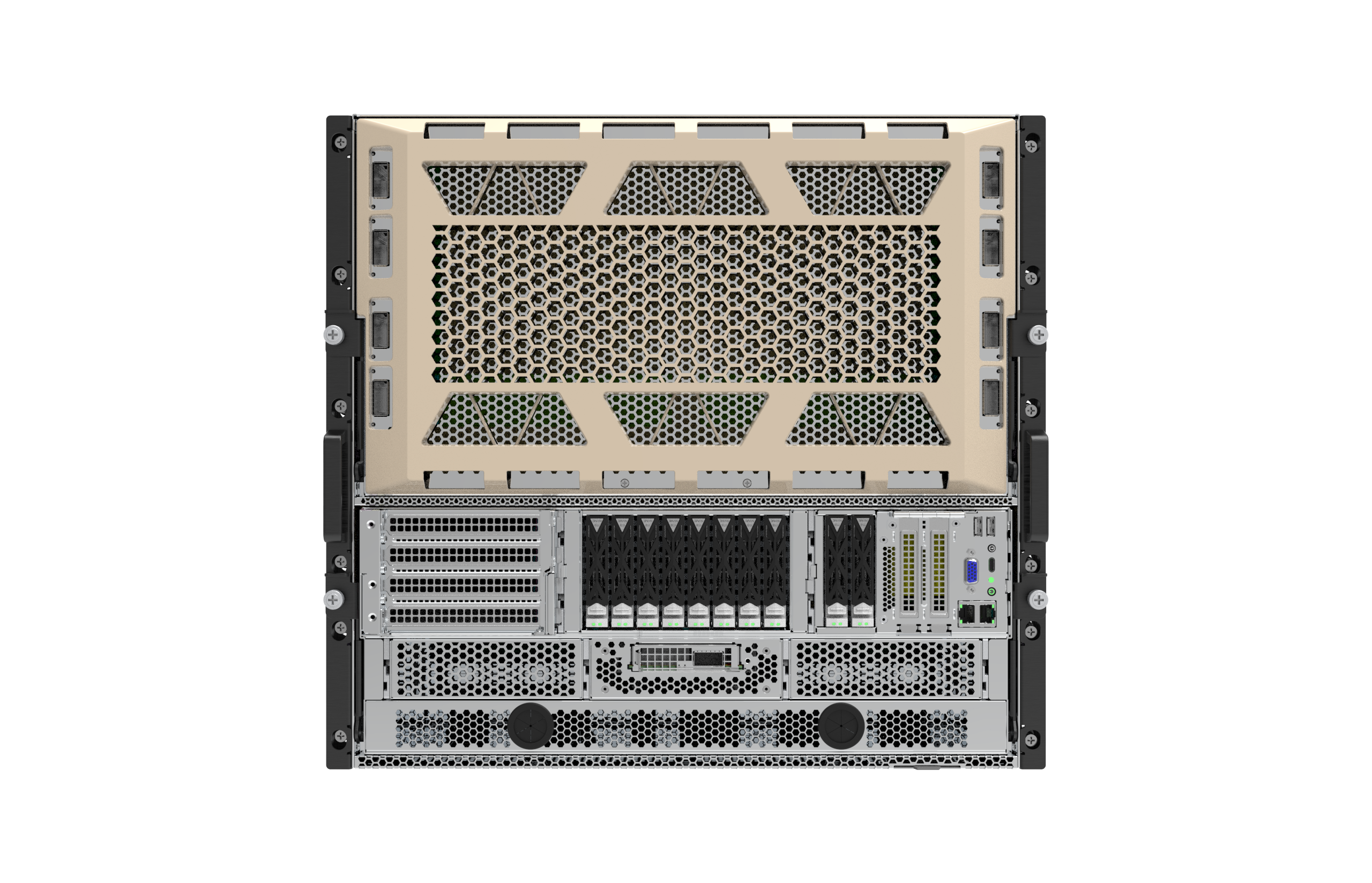

The X960 series is a 10U AI server , built on X86 architecture. It delivers exceptional performance, scalability, and reliability.
Engineered for high-density compute environments, it seamlessly integrates across cloud datacenters and enterprise AI infrastructures, providing a robust foundation to accelerate modern AI workloads.
Application
AI cloud computing, LLM Training, Inference, HPC
Technical Specifications
| CPU | 2* X86 Processor up to 350W |
| GPU | 8* High-performance OAM GPU module air cooling |
| Memory | Up to 32* DDR5 DIMM Slot, support RDIMM up to 6400MT/s |
| Storage | 10pcs U.2 NVMe |
| PCIe Extension | 4 FHHL/HHHL (X16) +1FHHL/HHHL (X16, reserved) |
| Enclosure Management | BMC: AST2600, 1* dedicated RJ45 MGMT port |
| IO | 2* USB3.0 Type-A Receptacle 1* PWR BTN with 1* PWR Indicator 1* Status LED 1* VGA 1* UART Port Over Type C 1* UID button& LED 1* GbE MGMT Port |
| Cooling | 20* 8086 FANs, N+1 Redundant |
| Operating Temp. | 10oC – 35oC |
| PSU | 2* 185mm Redundant 2700W HVDC/AC Input, 12V Output PSUs 8* 185mm Redundant 3200W HVDC/AC Input, 54V Output PSUs |
| Dimension | 440mm (H) x 448mm (W) x 900mm (D) |
