X800 series
Air-Cooled AI Server Powered based on X86 Platform.
Redefine performance and capability for AI and Graphics.
Powerful
- Support 500w Processors
- Support 8 FHFL dual slot PCIe GPU.
- Support 32 DIMM slots, RDIMM up to 6400 MT/s
Scalable
- On board 8 × 400 G QSFP port (CX8 SKU)
- 8 FHFL Dual slot = 5FHHL Single slot
- Support CPU : GPU : NIC = 2:8:5 (89144 SKU)
Optimized
- Support front I/O access
- High-efficiency thermal solution for power saves
- High-efficiency DC/DC solution
Overview

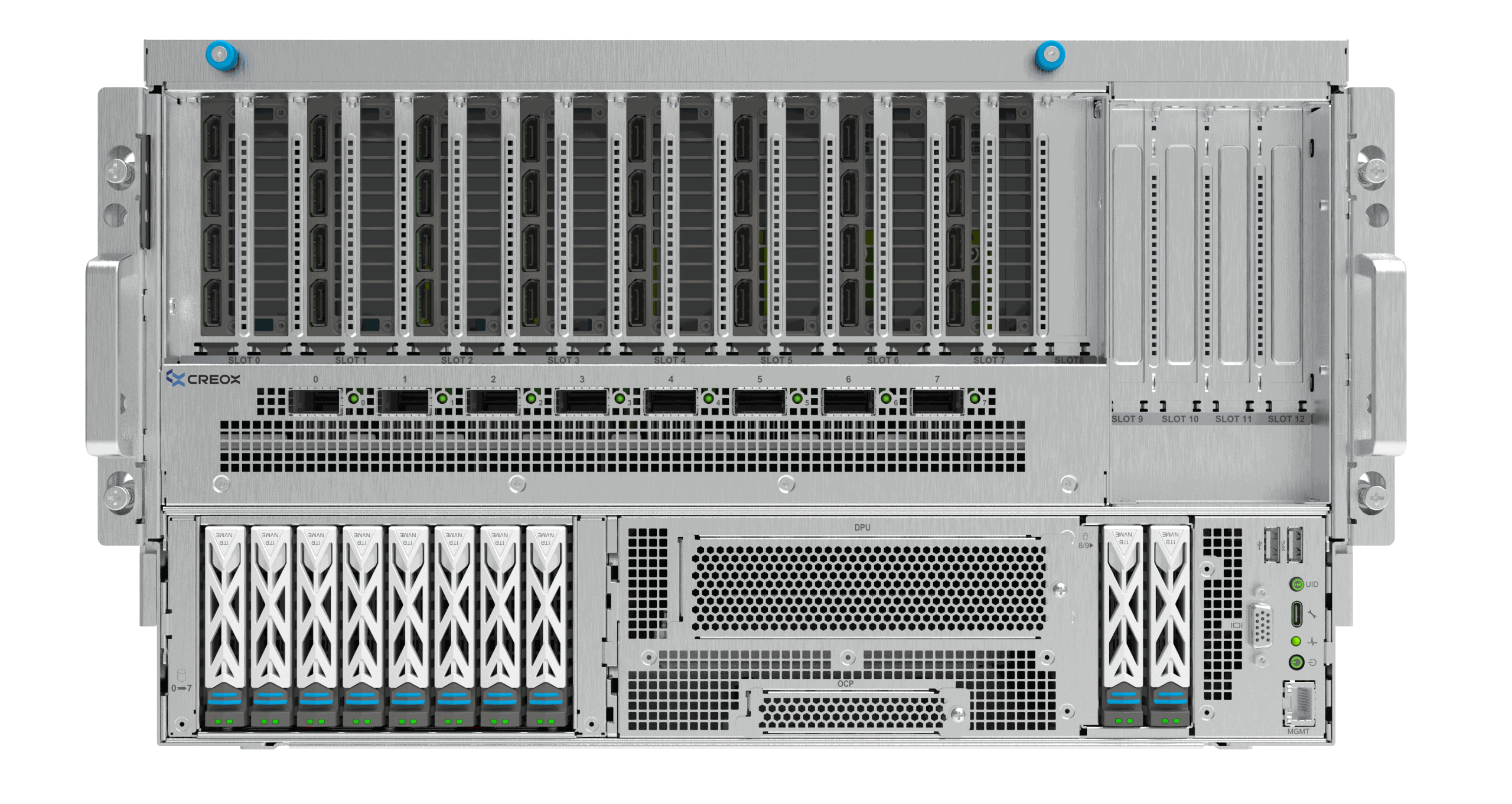

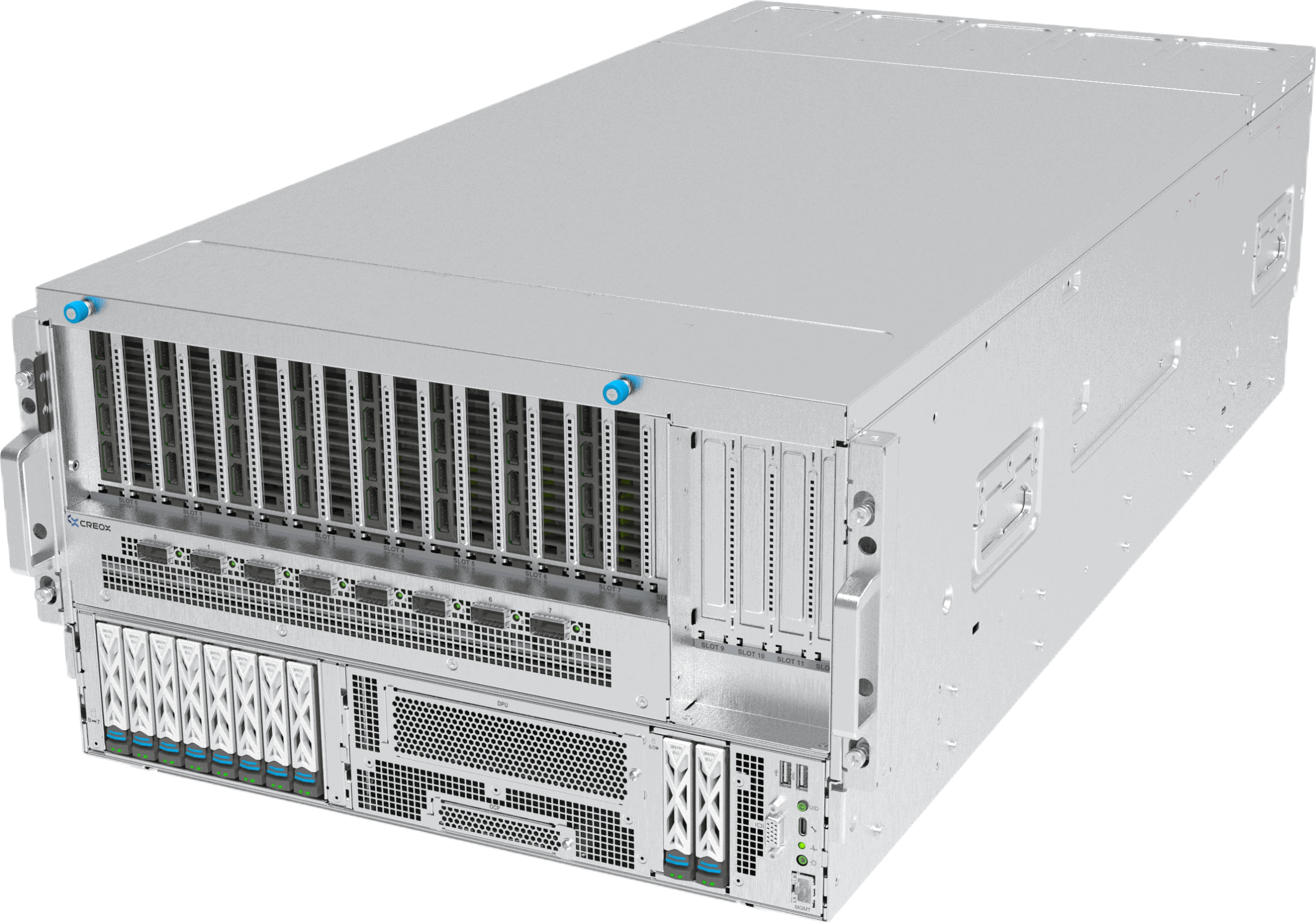

X800 series is a 6U 8 PCIe GPU card AI server,
based on the X86 Platform, support
500w Processor. Could fully support the AI business on
both cloud datacenter and enterprise IT.
Application
AI cloud computing, LLM Training, Inference, HPC
Technical Specifications
| CPU | 2* X86 Processor up to 500W |
| GPU | 8* FHFL Dual Slot for PCIe GPU |
| Memory | Up to 32* DDR5 DIMM Slot, support RDIMM up to 6400MT/s |
| Storage | 8* SFF NVMe slot (from switch) 2* SFF SATA/NVMe slot (from CPU, SATA need Add-in RAID card) Internal: 2* 2280 M.2 slot |
| PCIe Extension | Front PCIe Slot for GPU: 8* X16 FHFL Dual Slot (from switch) Front PCIe Slot for E-W NIC: 4* X16 FHHL Single Slot (from switch) Front PCIe Slot for N-S NIC: 1* X16 FHHL Single Slot (from CPU) Onboard 8* QSFP 400G for E-W NIC (CX8 SKU only) |
| Enclosure Management | BMC: AST2600, 1* dedicated RJ45 MGMT port |
| IO | 2* USB3.0 Type-A Receptacle 1* PWR BTN with 1* PWR Indicator 1* Status LED 1* VGA 1* UART Port Over Type C 1* UID button& LED 1* GbE MGMT Port |
| Cooling | Rear 10* 8086 FANs, Internal 4*8056 FANs N+1 Redundant |
| Operating Temp. | 5oC – 35oC |
| PSU | 8* 185mm 4+4 Redundant 2700, 12V Output PSUs Option：6* 185mm 5+1 Redundant 2000W, 12V Output PSUs |
| Dimension | 265mm (H) x 448mm (W) x 900mm (D) |
